Absolute rotary encoders, incremental rotary encoders and wire-actuated encoders
TR-Electronic rotary encoders with optical or magnetic scanning precisely acquire position in steel production, wind power plants, cranes and ships as well as in explosion-proof versions in painting lines. Miniature versions ensure the correct position in medical technology and SIL3 approved absolute rotary encoders ensure the necessary safety.
In addition to high-quality rotary encoders for almost every application, we also offer extensive accessories such as programming tools, displays and assembly components for quick and simple commissioning and seamless integration into your processes.
All TR-Electronic rotary encoders at a glance:
Absolut rotary encoder
Compact rotary encoders, safety encoders, double rotary encoders and more
Incremental rotary encoder
Programmable, explosion-proof, extremely resilient and more
Wire-actuated encoders
Draw-wire encoders with absolute rotary encoders or incremental rotary encoders

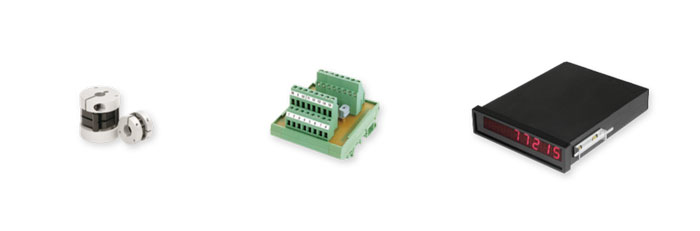

Accessories
Electrical and mechanical accessories for rotary encoders
Incremental rotary encoders
Programmable, explosion-proof, extremely resilient and more
Incremental rotary encoders are used in machines and installations in different resolutions. Thanks to their simple design, incremental rotary encoders are more economical to manufacture than absolute rotary encoders. On the other hand, they only indicate position changes and cannot detect movements without a power supply.
In addition to our programmable all-rounder with 58mm housing for almost all resolutions, our product portfolio also includes a wide range of different sizes. In combination with hollow shafts, solid shafts of different diameters and a selection of flanges, you will find the right incremental rotary encoder for your machine's installation situation.
For secured detection of speed, direction of rotation or stationary monitoring, TR-Electronic provides safety-certified incremental rotary encoders. The safety-certified rotary encoders allow for the operating modes SLS, SOS SSR, SDI and SSM in conjunction with an appropriate safety module.
You will also find a multitude of housing options, e.g. ATEX-compliant housingsand housings for use in aggressive media or for heavy mechanical stress (heavy-duty).
All TR-Electronic incremental rotary encoders at a glance:
Programmable incremental rotary encoders
The all-rounder in a 58mm housing
Functional safe incremental encoders
SIL2-certified incremental encoders
Non-programmable incremental rotary encoders
Factory-set resolution

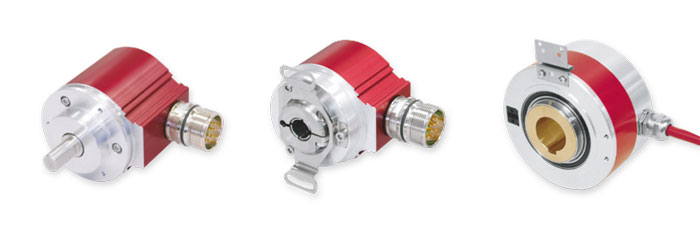

Programmable incremental rotary encoders
The all-rounder in a 58 mm housing
Our programmable incremental rotary encoders offer the optimal basis for every requirement and are available with solid shaft, continuous hollow shaft, blind shaft or integrated coupling. You adapt the resolution of our programmable incremental rotary encoders (size 58 mm) via Software to meet your demands.
All programmable incremental rotary encoders at a glance:
The new generation I__58:2
The new generation I__58:2 has wide range input of 4,5..32 V dc and number of periods per turn up to 65.536. Additionally, it provides hollow and blind shaft diameters up to 15 mm resp. ½”.
Functional safe incremental encoders
The solution doesn't always have to be complicated. An incremental rotary encoder is just the ticket for the safe detection of speed, direction of rotation or stationary monitoring. The use of certified components makes us your one stop shop for complex application solutions. We offer the safety-certified incremental rotary encoder IE58+FS (Functional Safety). The user can choose between square-wave signals (with TTL or HTL level) and sine-cosine interface. The rotary encoder is certified for applications with SIL 2 or PLd requirements. The rotary encoder allows for the operating modes SLS, SOS SSR, SDI and SSM in conjunction with an appropriate safety module.
To fulfill the certified safety functions, the safety-oriented incremental rotary encoder IE58+FS is connected to a safety module, which then performs the relevant inspection. For the development and certification of the IE58+FS, modules from different manufacturers have been integrated and tested with the IE58+FS. The IE58+FS supplements the series of safety-oriented products with integrated safety (CD_75) with an important component for a modular safety concept, allowing the user to select the required evaluation module according to his or her requirements.
Non-programmable incremental rotary encoders
Factory-set resolution
Our incremental rotary encoders with resolution preconfigured in the factory can also be used in all applications which require the basic functions of incremental position detection.
The resolution of these incremental rotary encoders is set ex-factory by fitting a code disk with a defined number of lines. These incremental rotary encoders are available in different sizes from 24 mm - 120 mm. Naturally they are also available with different mechanical connections such as solid shaft, continuous hollow shaft, blind shaft or integrated coupling.
Wire draw encoders by TR-Electronic are equipped with absolute or incremental rotary encoders and fit the specific encoder series perfectly.
Three classes fulfill specific needs for different mechanical loads, duty cycle, lifetime, resolution resp. reproducibility.
The SL 30 is designed for many years of use with a high activity rate. With a big number of options, the system can be adapted to many applications. Those wire draw mechanics are available as well approved for applications in explosive atmospheres, compatible with our AE _ 70.
The WDS is suitable for normal automation tasks. The complete cable drum including spring assembly is installed in an extruded aluminium housing.
Standard wire draw encoders in our selector
For Standard wire length encoder boxes type WDS, we provide deflection pulleys that can be added by the user
The WPS are cost-effective products for simple measuring applications with lower accuracy requirements. In terms of precision it is compatible with our rotary encoders with magnetic scanning.
